# Form Field Code Structure

Fluent CRM offers an easy way to create forms without any knowledge of HTML or JavaScript by using its structural format for generating form fields. The form fields are determined by this structure.

There are 26 different types of form fields available in Fluent CRM. In addition to the specific form fields, there are also some common and optional fields that can be included in every form block. These common and optional fields include:

Key Description
label The `label` value is a string that will be displayed as the label for the form field.
inline_help The `inline_help` value is a string that will be displayed as inline help text for the form field.
placeholder The `placeholder` value is a string that will be displayed as the placeholder text in the form field when no option has been selected.
help The `help` value is a string that will be displayed as a help text for the form field.
wrapper_class (Optional) The `wrapper_class` value specifies a class that will be applied to the wrapper element for the form field.
readonly (Optional) If this property is true, then the field will be read-only
dependency

# Option selectors

'subscription_status' => [
    'type'        => 'option_selectors',
    'option_key'  => 'editable_statuses',
    'is_multiple' => false,
    'label'       => 'Subscription Status',
    'placeholder' => 'Select Status'
]
1
2
3
4
5
6
7

This code is defining an array with keys and values for a form field in Fluent CRM. The form field has the key 'subscription_status', and the values for this field include:

  • type: option_selectors
  • option_key: editable_statuses
  • is_multiple: false

The type value indicates that this form field is an option_selectors field, which is a type of form field that allows the user to select one or more options from a list. The option_key value specifies the key for the list of options that will be displayed in the form field, which in this case is editable_statuses. The is_multiple value is a boolean indicating whether the user can select multiple options from the list or just one.

Key Description
creatable Can the user create a new tag/list
size (Optional) Size of the field
option_key Dynamic Data Sets: Possible Values – See bellow
is_multiple If the selector is multiple or not

# Option Key possible sets.

Key Description
tags Tags are like Lists but more ways to filter your contacts inside a list.
lists List are categories of your contacts.
editable_statuses All editable statuses of a user
woo_products All woo-commerce products
email_sequences All sequences of Fluent-CRM
campaigns All campaigns of Fluent-CRM
product_selector_tutorlms All courses of TutorLMS
edd_coupons All coupons of Easy Digital Download
product_selector_learndash All options of Learndash courses
product_selector_learndash_groups All options of Learndash groups
product_selector_lifterlms All options of LifterLMS courses
product_selector_lifterlms_groups All options of LifterLMS memberships
product_selector_pmpro All memberships of Paid Membership Pro
product_selector_rcp All memberships of Restrict Content Pro
product_selector_wishlist All memberships of Wishlist Member
woo_coupons All Woo-commerce coupons
woo_order_statuses All Woo-commerce order statuses
woo_categories All Woo-commerce categories
product_selector_woo All Woo-commerce products
product_selector_woo_order All Woo-commerce products
edd_products All Easy Digital Download products
product_selector_edd All Easy Digital Download products

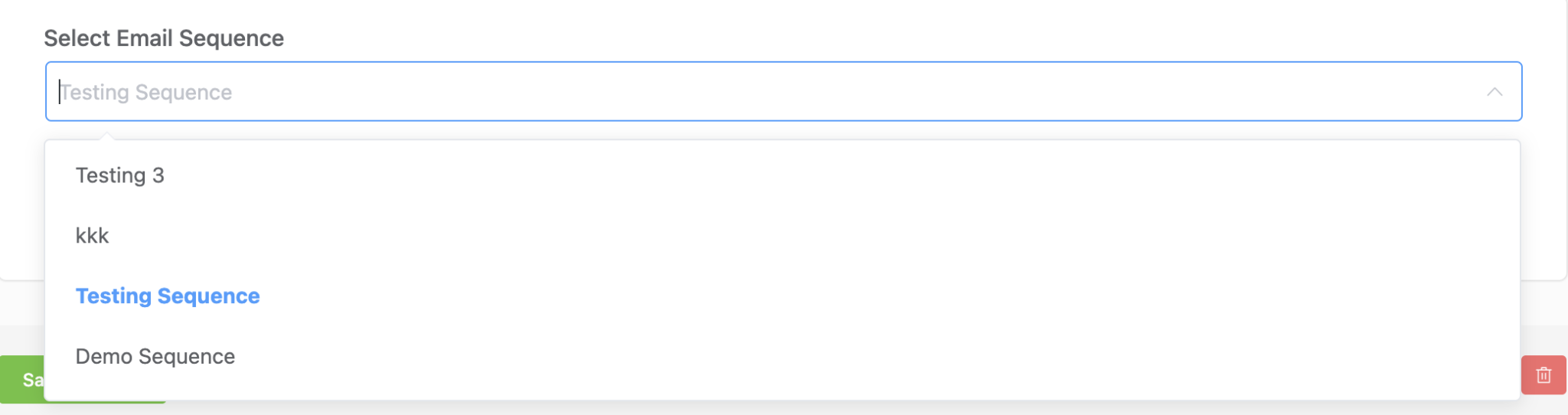

# The preview of the example block

Option selectors

# Single or multi-select

'product_ids'     => [
    'type'        => 'multi-select',
    'label'       => 'Target Products',
    'help'        => 'Select for which products this goal will run',
    'options'     => [
          [
                'id'    => '2',
                'title' => 'First Product'
          ],
          ...
    ],
    'inline_help' => 'Keep it blank to run to any product purchase',
],
1
2
3
4
5
6
7
8
9
10
11
12
13

This code is defining an array with keys and values for a form field in Fluent CRM. The form field has the key product_ids, and the values for this field include:

  • type: multi-select
  • options: an array with a single element, which is itself an array with two keys: id and title. The value of id is 2, and the value of title is First Product.

The type value indicates that this form field is a multi-select field, which is a type of form field that allows the user to select one or more options from a list. The options value is an array that contains the available options for the form field, with each option represented as an array with id and title keys.

This form field allows the user to select one or more products from a list of available options. The help and inline help text provide additional information and guidance to the user.

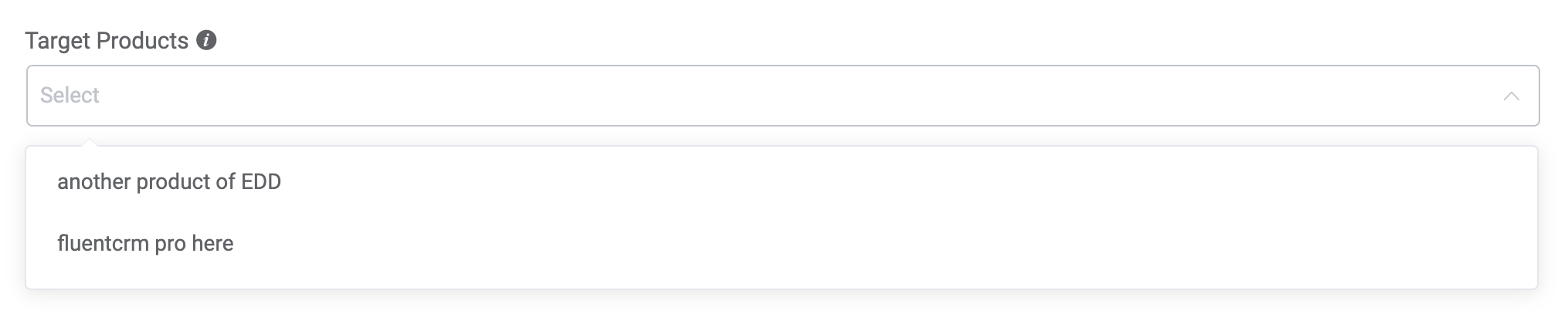

# The preview of the example block

Single or multi-select

# Options possible sets:

Key Description
id set selector id
title set selector title

# Radio

'purchase_type'      => [
    'type'        => 'radio',
    'label'       => 'Purchase Type'
    'help'        => 'Select the purchase type',
    'options'     => [
        [
            'id'    => 'all',
            'title' => 'Any type of purchase'
        ],
        ...
    ],
    'inline_help' => 'For what type of purchase you want to run this goal'
],
1
2
3
4
5
6
7
8
9
10
11
12
13

This code is defining an array with keys and values for a form field in Fluent CRM. The form field has the key purchase_type, and the values for this field include:

  • type: radio
  • options: an array with a single element, which is itself an array with two keys: id and title. The value of id is all, and the value of title is Any type of purchase.

The type value indicates that this form field is a radio field, which is a type of form field that allows the user to select one option from a list of available options by clicking on a radio button. The options value is an array that contains the available options for the form field, with each option represented as an array with id and title keys.

This form field allows the user to select the type of purchase for which they want to run this goal. The user can choose the option Any type of purchase by clicking on the corresponding radio button. The help and inline help text provide additional information and guidance to the user.

# Options Key possible sets:

Key Description
id Set selector id
title Set selector title

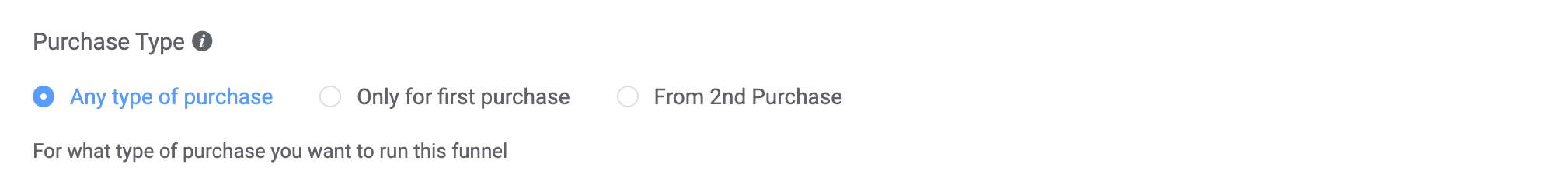

# The preview of the example block.

Radio

# Number input

'wait_time_amount' => [
    'label'         => 'Wait Time',
    'type'          => 'input-number',
    'wrapper_class' => 'fc_2col_inline pad-r-20'
],
1
2
3
4
5

This code is defining an array with keys and values for a form field in Fluent CRM. The form field has the key wait_time_amount, and the values for this field include:

  • type: input-number

The type value indicates that this form field is an input-number field, which is a type of form field that allows the user to input a numerical value.

This form field allows the user to input a numerical value for the wait time. The label and wrapper class provide additional styling and layout information for the form field.

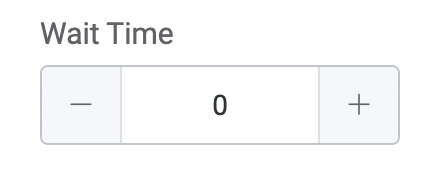

# The preview of the example block.

Number input

# Text input

'send_email_custom'  => [
    'wrapper_class' => 'fc_half_field',
    'type'          => 'input-text',
    'label'         => 'Send To Email Addresses (If Custom)',
    'placeholder'   => 'Custom Email Addresses',
    'inline_help'   => 'Use comma separated values for multiple'
]
1
2
3
4
5
6
7

This code is defining an array with keys and values for a form field in Fluent CRM. The form field has the key send_email_custom, and the values for this field include:

  • type: input-text

The type value indicates that this form field is an input-text field, which is a type of form field that allows the user to input text.

This form field allows the user to input one or more email addresses to which the form should be sent. The user can enter multiple email addresses by separating them with commas. The label, placeholder, and inline help text provide additional guidance and context for the user. The wrapper class provides additional styling information for the form field.

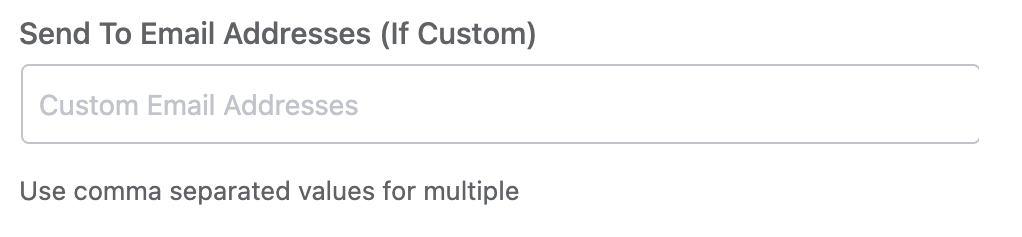

# The preview of the example block.

Text input

# Text input popper

'note'      => [
    'type'       => 'input-text-popper',
    'field_type' => 'textarea',
    'label'      => 'Order Note',
    'help'       => 'Type the note that you want to add to the reference order. You can also use smart tags'
]
1
2
3
4
5
6

This code is defining an array with keys and values for a form field in Fluent CRM. The form field has the key note, and the values for this field include:

  • type: input-text-popper
  • field_type: textarea

The type value indicates that this form field is an input-text-popper field, which is a type of form field that allows the user to input text and displays a popover or tooltip with additional information when the user hovers over the field. The field_type value specifies that the form field should be a textarea, which is a type of form field that allows the user to input multi-line text.

This form field allows the user to input a note that will be added to the reference order. The user can use smart tags in the note, and the label and help text provide additional context and guidance for the user. The popover or tooltip will display additional information when the user hovers over the field.

# The preview of the example block.

Text input popper

# Yes & no check

'run_multiple'       => [
    'type'        => 'yes_no_check',
    'label'       => '',
    'check_label' => 'Restart the Automation Multiple times for a contact for this event. (Only enable if you want to restart automation for the same contact)',
    'inline_help' => 'If you enable, then it will restart the automation for a contact if the contact already in the automation. Otherwise, It will just skip if already exist',
]
1
2
3
4
5
6

This code is defining an array with keys and values for a form field in Fluent CRM. The form field has the key run_multiple, and the values for this field include:

  • type: yes_no_check
  • check_label: Restart the Automation Multiple times for a contact for this event. (Only enable if you want to restart automation for the same contact)

The type value indicates that this form field is a yes_no_check field, which is a type of form field that allows the user to select either yes or no by checking or unchecking a checkbox. The check_label value is a string that will be displayed next to the checkbox as the label for the field.

This form field allows the user to specify whether the automation should be restarted multiple times for a contact for a specific event. If the user enables the option by checking the checkbox, the automation will be restarted for a contact if the contact is already in the automation. If the option is not enabled, the automation will be skipped for a contact that is already in the automation. The check label and inline help text provide additional information and guidance to the user.

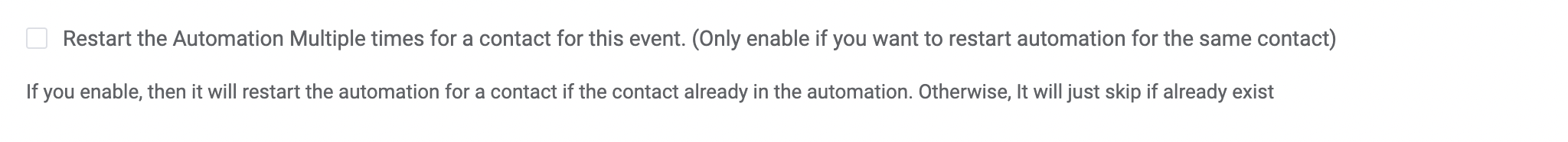

# The preview of the example block:

Yes & no check

# Grouped select

'lesson_ids'      => [
    'type'        => 'grouped-select',
    'label'       => 'Target Lessons',
    'help'        => 'Select for which Lessons this automation will run',
    'options'     => [
          [
               'title'   => 'First Course',
               'slug'    => 'first_course',
               'options' => [
                     [
                         'id'    => '1'
                         'title' => 'First Lesson'
                     ],
                     ...
               ]
          ],
          ...
    ],
    'is_multiple' => true,
    'inline_help' => 'Keep it blank to run to any Lesson',
],
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

This code is defining an array with keys and values for a form field in Fluent CRM. The form field has the key lesson_ids, and the values for this field include:

  • type: grouped-select
  • options: an array with one or more elements, each of which is itself an array with three keys: title, slug, and options. The value of title is the title of a course, the value of slug is a unique identifier for the course, and the value of options is an array with one or more elements, each of which is itself an array with two keys: id and title. The value of id is a unique identifier for a lesson, and the value of title is the title of the lesson.
  • is_multiple: true

The type value indicates that this form field is a grouped-select field, which is a type of form field that allows the user to select one or more options from a list that is organized into groups. The options value is an array that contains the available options for the form field, grouped by course and represented as arrays with title, slug, and options keys. The is_multiple value specifies that the user can select multiple options from the list.

This form field allows the user to select one or more lessons from a list of available options, organized by course. The user can select multiple options by holding down the Ctrl key while making their selections. The help and inline help text provide additional information and guidance to the user. The form field will run the automation for the selected lessons. If no lessons are selected, the automation will run for any lesson.

# Options possible sets:

key Description
title The `title` value is a string that represents the title of the course.
slug The `slug` value is a unique identifier for the course.
options The `options` value is an array that contains the lessons for the course – See below

# Options -> Options possible sets:

Key Description
id The value of `id` is a unique identifier for a option
title The value of `title` is the title for a option

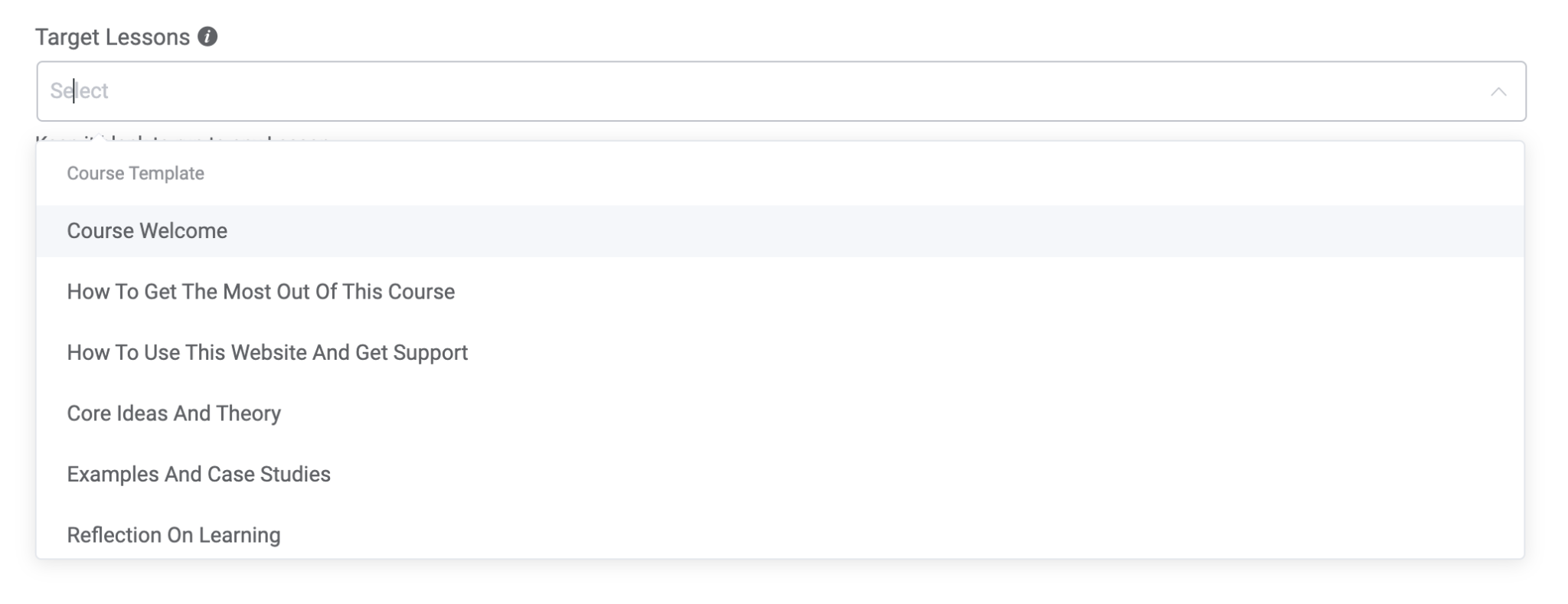

# The preview of the example block.

Grouped select

# Multi text options

'target_lesson' => [
    'type'        => 'multi_text_options',
    'label'       => 'Target lessons',
    'help'        => 'Select target lessons',
    'input_type'  => 'text',
    'placeholder' => 'Target lessons',
    'inline_help' => 'Keep it blank to run all lessons'
]
1
2
3
4
5
6
7
8

This code defines an array with keys and values for a form field in Fluent CRM. The form field has the key target_lesson, and the values for this field include:

  • type: multi_text_options
  • input_type: text

The type value indicates that this form field is a multi_text_options field, which is a type of form field that allows the user to input multiple text options. The input_type value specifies that the form field should be a text field, which is a type of form field that allows the user to input a single line of text.

This form field allows the user to input multiple text options, each on a separate line. The options will be stored as an array of strings. The form field has a label and help text that provide context and guidance for the user, and a placeholder and inline help text that provide additional guidance and information. If no options are entered, the form field will run for all lessons.

# The preview of the example block.

Multi text options

# Email campaign composer

'campaign'  => [
    'label' => '',
    'type'  => 'email_campaign_composer'
],
1
2
3
4

This code is defining an array with keys and values for a form field in Fluent CRM. The form field has the key campaign, and the values for this field include:

  • type: email_campaign_composer

The type value indicates that this form field is an email_campaign_composer field, which is a type of form field that allows the user to get an email campaign template editor block.

This form field allows the user to get an email campaign template editor block by inputting various campaign details and creating the email content. The form field does not have a label, so it is likely used in conjunction with other form fields that provide context and guidance for the user.

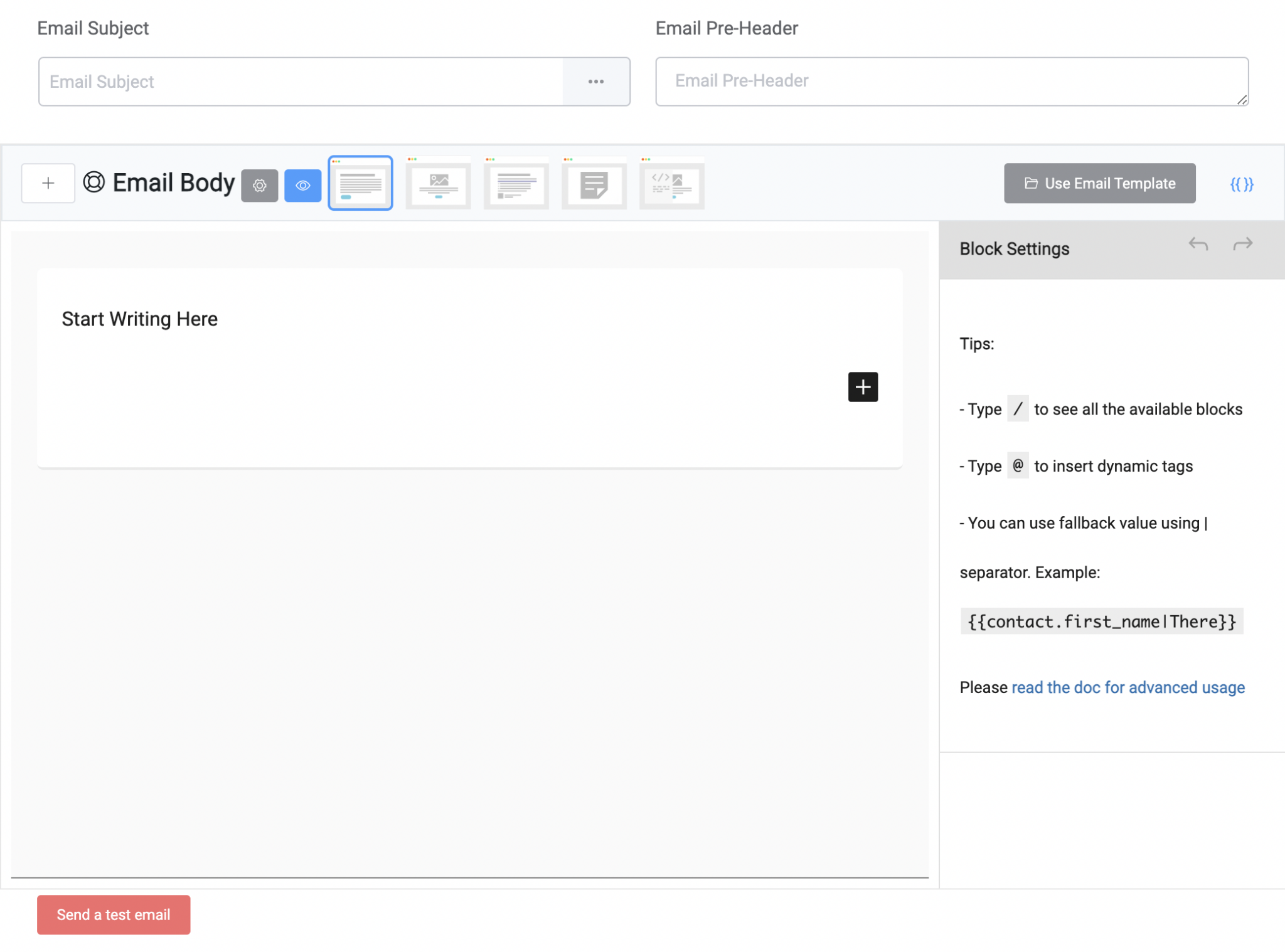

# The preview of the example block.

Email campaign composer

# Reload field selection

'course_id'       => [
    'type'        => 'reload_field_selection',
    'label'       => 'Target Course',
    'help'        => 'Select Course to find out Lesson',
    'options'     => [
          [
              'id'    => '1',
              'title' => 'First Course'
          ],
          ...
     ],
    'inline_help' => 'You must select a course'
],
1
2
3
4
5
6
7
8
9
10
11
12
13

This code is defining an array with keys and values for a form field in Fluent CRM. The form field has the key course_id, and the values for this field include:

  • type: reload_field_selection
  • options: an array with one or more elements, each of which is itself an array with two keys: id and title. The value of id is a unique identifier for a course, and the value of title is the title of the course.

The type value indicates that this form field is a reload_field_selection field, which is a type of form field that allows the user to select an option from a list and then reloads a selection field based on the selected option. The options value is an array that contains the available options for the form field, represented as arrays with id and title keys.

This form field allows the user to select a course from a list of available options. When the user selects a course, the form field will reload a selection field based on the selected course. The form field has a label and help text that provide context and guidance for the user, and inline help text that reminds the user that they must select a course. The form field uses the unique identifiers and titles of the courses as the options for the selection field.

# Options possible sets:

Key Description
id The value of `id` is a unique identifier for a option
title The value of `title` is the title for a option

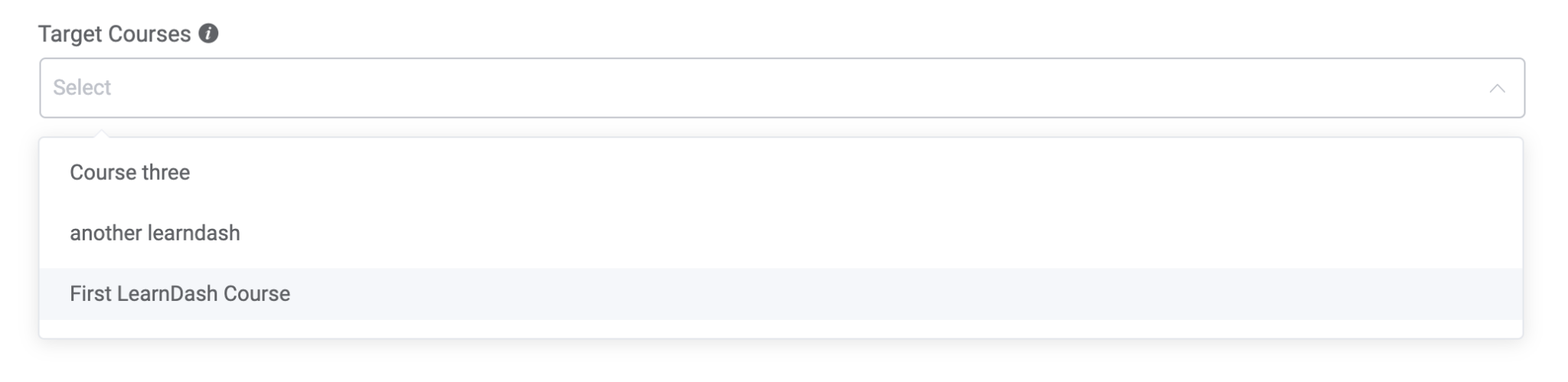

# The preview of the example block.

Reload field selection

# Form group mapper

'primary_fields'        => [
    'label'             => 'Map Primary Data',,
    'type'              => 'form-group-mapper',
    'value_options'.    => [
        [
            'id'    => '',
            'title' => ''
        ],
        ...
    ],
    'local_label'      => 'Contact Field (CRM)',
    'remote_label'     => 'Form Field',
    'fields'           => [
        'first_name' => [
               'type'   => 'value_options',
               'label'  => 'First Name'
        ],
        'last_name' => [
              'type'   => 'value_options',
              'label'  => 'Last Name'
        ],
        'email'    => [
            'type'    => 'value_options',
            'label'   => 'Email'
        ]
    ]
]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

This code is defining an array with keys and values for a form field in Fluent CRM. The form field has the key primary_fields, and the values for this field include:

  • type: form-group-mapper
  • value_options: an array with one or more elements, each of which is itself an array with two keys: id and title. The values of id and title are both empty strings.
  • local_label: Contact Field (CRM)
  • remote_label: Form Field
  • fields: an array with keys and values for form fields that allow the user to select options from a list.

The type value indicates that this form field is a form-group-mapper field, which is a type of form field that allows the user to map data between two groups of fields. The value_options value is an array that contains the available options for the form field. The local_label and remote_label values are strings that will be displayed as labels for the two groups of fields. The fields value is an array that contains keys and values for form fields that allow the user to select options from a list.

This form field allows the user to map data between two groups of fields. The form field has a label and uses the local_label and remote_label values to label the two groups of fields. The form field uses the value_options array to provide the available options for the user to select from. The form field also has keys and values for form fields that allow the user to select options from a list. These form fields allow the user to map specific data between the two groups of fields.

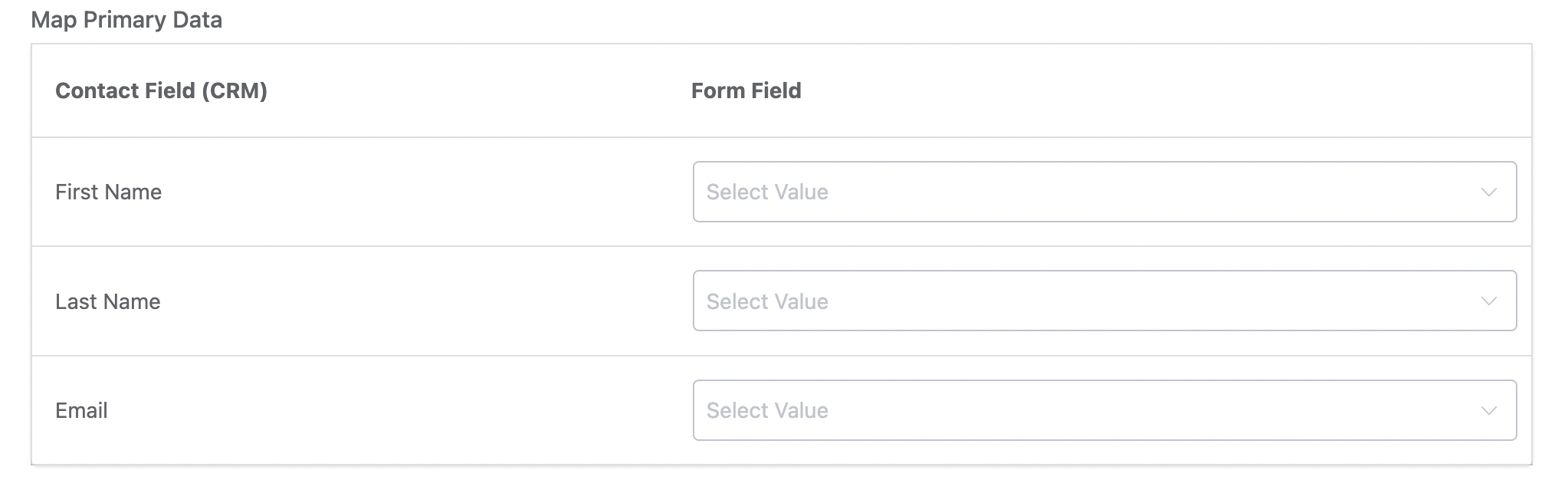

# The preview of the example block.

Form group mapper

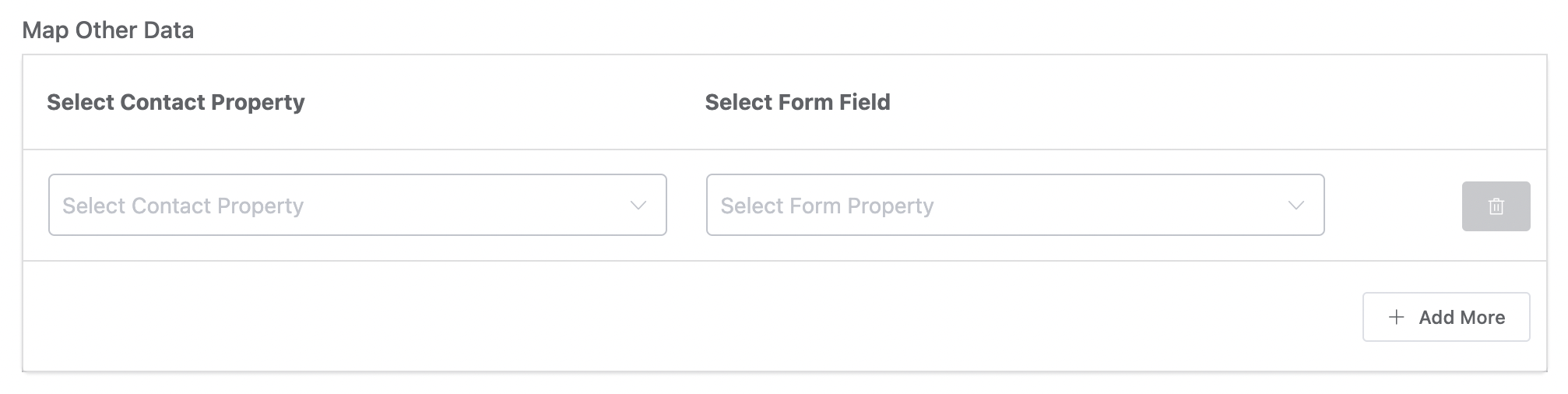

# Form many dropdown mappers

'other_fields'           => [
    'label'              => 'Map Other Data',
    'type'               => 'form-many-drop-down-mapper',
    'value_options'      => [
        [
            'id'    => '',
            'title' => ''
        ],
        ...
    ],
    'local_label'        => 'Select Contact Property',
    'remote_label'       => 'Select Form Field',
    'local_placeholder'  => 'Select Contact Property',
    'remote_placeholder' => 'Select Form Property',
    'fields'             => [
            'prefix'         => [
                'type'  => 'value_options',
                'label' => 'Name Prefix'
            ],
            'address_line_1' => [
                'type'  => 'value_options',
                'label' => 'Address Line 1'
            ],
            'address_line_2' => [
                'type'  => 'value_options',
                'label' => 'Address Line 2'
            ],
     ]
]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

This code is defining an array with keys and values for a form field in Fluent CRM. The form field has the key other_fields, and the values for this field include:

  • type: form-many-drop-down-mapper
  • value_options: an array with one or more elements, each of which is itself an array with two keys: id and title. The values of id and title are both empty strings.
  • local_label: Select Contact Property
  • remote_label: Select Form Field
  • local_placeholder: Select Contact Property
  • remote_placeholder: Select Form Property
  • fields: an array with keys and values for form fields that allow the user to select options from a list.

The type value indicates that this form field is a form-many-drop-down-mapper field, which is a type of form field that allows the user to map data between two groups of fields using drop-down menus. The value_options value is an array that contains the available options for the form field. The local_label and remote_label values are strings that will be displayed as labels for the two groups of fields, and the local_placeholder and remote_placeholder values are strings that will be displayed as placeholders for the drop-down menus. The fields value is an array that contains keys and values for form fields that allow the user to select options from a list.

This form field allows the user to map data between two groups of fields using drop-down menus. The form field has a label and uses the local_label and remote_label values to label the two groups of fields. The form field uses the value_options array to provide the available options for the user to select from, and the local_placeholder and remote_placeholder values provide placeholders for the drop-down menus. The form field also has keys and values for form fields that allow the user to select options from a list. These form fields allow the user to map specific data between the two

# The preview of the example block.

Form many dropdown mappers

# Html

'subscription_status_info' => [
    'type'       => 'html',
    'info'       => 'An Automated double-optin email will be sent for new subscribers',
]
1
2
3
4

The type element is set to html, which indicates that the content in the info element is in HTML format.

# Url selector

'redirect_to' => [
    'type'        => 'url_selector',
    'label'       => 'Redirect To',
    'placeholder' => 'Your Target URL',
    'help'        => 'Contacts will be redirected to this link.',
    'inline_help' => 'Please provide the url to where the contact will be redirected'
],
1
2
3
4
5
6
7

This code is defining an array with keys and values for a form field in Fluent CRM. The form field has the key redirect_to, and the values for this field include:

  • type: url_selector

The type value indicates that this form field is a url_selector field, which is a type of form field that allows the user to input a URL.

This form field allows the user to input a URL. The form field has a label and a placeholder that provide context and guidance for the user, and help and inline help text that explain the purpose of the form field. When the user inputs a URL and submits the form, contacts will be redirected to the URL.

# The preview of the example block:

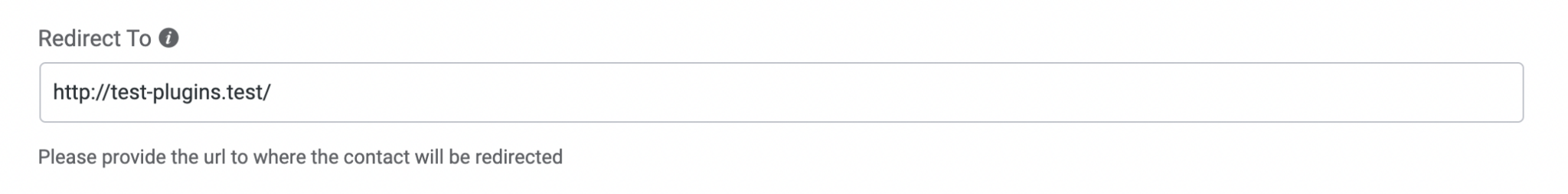

Url selector

# Input values pair properties

'contact_properties'     => [
    'type'               => 'input_value_pair_properties',
    'support_operations' => 'yes',
    'label'              => 'Setup contact properties that you want to update',
    'data_key_label'     => 'Contact Property',
    'data_value_label'   => 'Property Value',
    'property_options'   => [
         'contact_type'  => [
             'label'     => 'Contact Type',
             'type'      => 'select',
             'options'   => [
                  [
                      'id'    => 'lead',
                      'slug'  => 'lead',
                      'title' => 'Lead'
                  ],
                  ...
             ]
         ],
    ]
]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

This code is defining an array with keys and values for a form field in Fluent CRM. The form field has the key contact_properties, and the values for this field include:

  • type: input_value_pair_properties
  • support_operations: yes
  • data_key_label: Contact Property
  • data_value_label: Property Value
  • property_options: an array with keys and values for form fields that allow the user to input key-value pairs

The type value indicates that this form field is an input_value_pair_properties field, which is a type of form field that allows the user to input key-value pairs. The support_operations value is a string that specifies whether the form field supports operations. The data_key_label and data_value_label values are strings that will be displayed as labels for the input fields for the key and value, respectively. The property_options value is an array that contains keys and values for form fields that allow the user to input key-value pairs.

This form field allows the user to input key-value pairs for contact properties that they want to update. The form field has a label and labels for the input fields that provide context and guidance for the user. The property_options array contains keys and values for form fields that allow the user to input key-value pairs. When the user inputs the key-value pairs and submits the form, the contact properties will be updated with the specified key-value pairs.

# property_options possible sets:

key Description
id The value of `id` is a unique identifier for a option
slug The value of `slug` is the title for a option
title The value of `title` is the title for a option

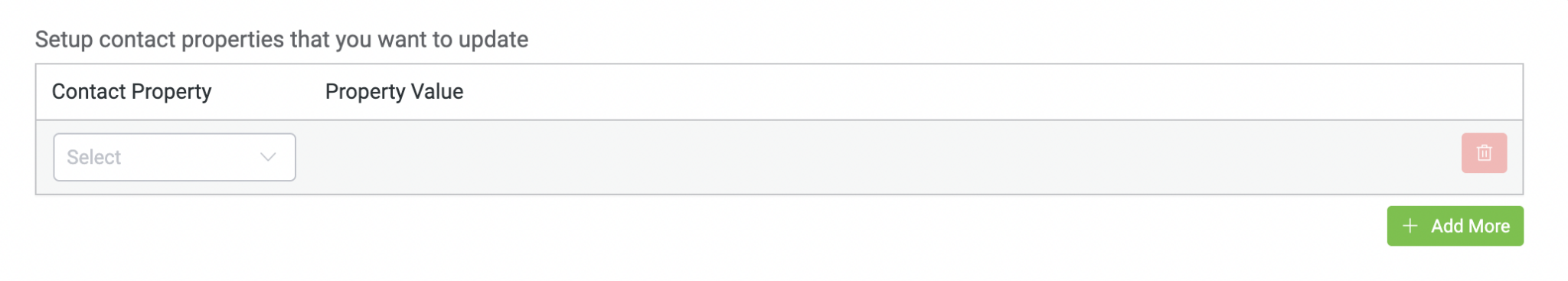

# The preview of the example block.

Input values pair properties

# Text values multi properties

'meta_properties'            => [
    'label'                  => 'User Meta Mapping',
    'type'                   => 'text-value-multi-properties',
    'data_key_label'         => 'User Meta Key',
    'data_value_label'       => 'User Meta Value',
    'data_value_placeholder' => 'Meta Value',
    'data_key_placeholder'   => 'Meta key',
    'help'                   => 'If you want to map user meta properties you can add that here. This is totally optional',
    'value_input_type'       => 'text-popper'
],
1
2
3
4
5
6
7
8
9
10

This code is defining an array with keys and values for a form field in Fluent CRM. The form field has the key meta_properties, and the values for this field include:

  • type: text-value-multi-properties
  • data_key_label: User Meta Key
  • data_value_label: User Meta Value
  • data_value_placeholder: Meta Value
  • data_key_placeholder: Meta key
  • value_input_type: text-popper

The type value indicates that this form field is a text-value-multi-properties field, which is a type of form field that allows the user to input multiple key-value pairs. The data_key_label and data_value_label values are strings that will be displayed as labels for the input fields for the key and value, respectively. The data_value_placeholder and data_key_placeholder values are strings that will be displayed as placeholders in the input fields for the value and key, respectively. The value_input_type value specifies the type of input field for the value.

This form field allows the user to input multiple key-value pairs for user meta properties. The form field has a label and labels for the input fields that provide context and guidance for the user, and placeholders that provide examples of the expected input. The form field also has a help text that explains the purpose of the form field. When the user inputs the key-value pairs and submits the form, the user meta properties will be updated with the specified key-value pairs.

# The preview of the example block.

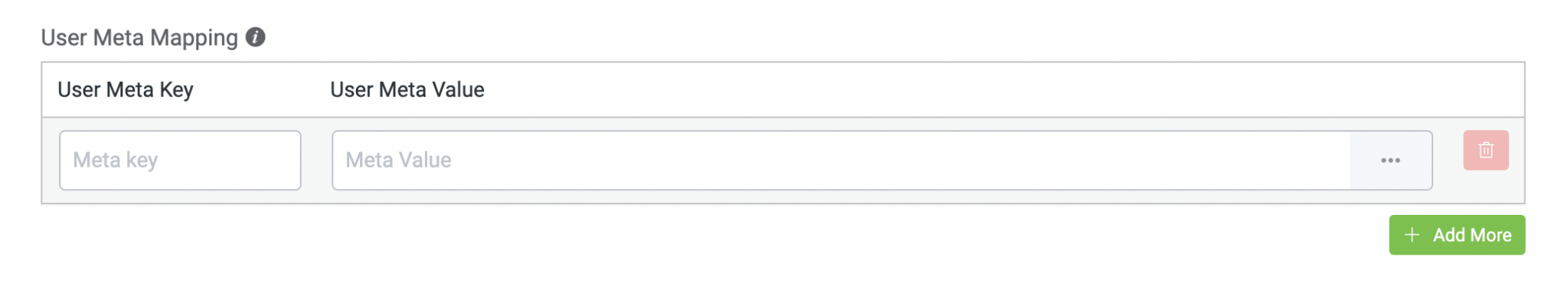

Text values multi properties

# Html editor

'description' => [
    'type'    => 'html_editor',
    'label'   => 'Description'
]
1
2
3
4

This code is defining an array with keys and values for a form field in Fluent CRM. The form field has the key description, and the values for this field include:

  • type: html_editor

The type value indicates that this form field is an html_editor field, which is a type of form field that allows the user to input and edit HTML content.

This form field allows the user to input and edit HTML content. The form field has a label that provides context and guidance for the user. When the user inputs and edits the HTML content and submits the form, the HTML content will be stored and processed as needed.

# The preview of the example block.

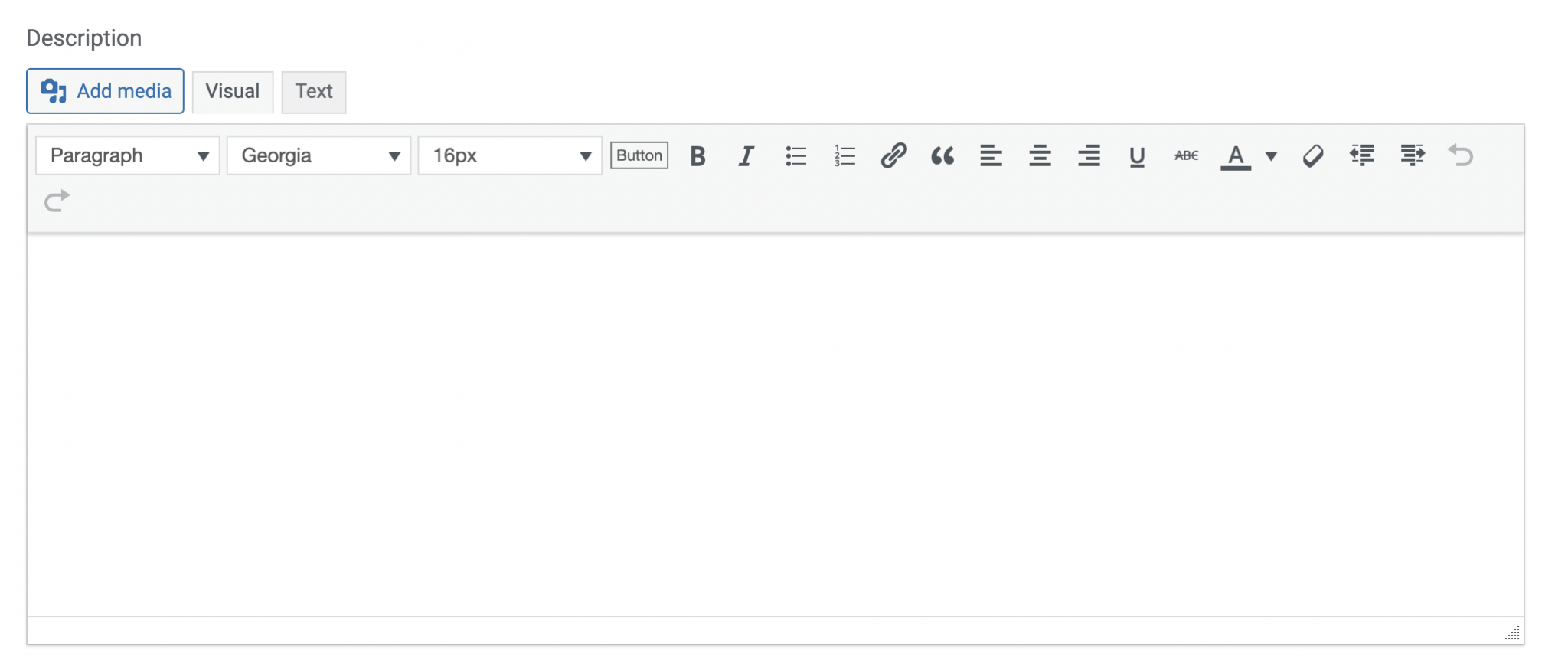

Html editor

# Rest selector

'course_id' => [
    'type'        => 'rest_selector',
    'option_key'  => 'product_selector_learndash',
    'is_multiple' => false,
    'clearable'   => true,
    'label'       => 'Select Course to Enroll',
    'placeholder' => 'Select Course',
]
1
2
3
4
5
6
7
8

This code is defining an array with keys and values for a form field in Fluent CRM. The form field has the key course_id, and the values for this field include:

  • type: rest_selector
  • option_key: product_selector_learndash
  • clearable: true

The type value indicates that this form field is a rest_selector field, which is a type of form field that allows the user to select from a list of options that are loaded from a REST endpoint. The option_key value specifies the key for the REST endpoint that will be used to load the options. The clearable value specifies whether or not the user can clear their selection.

This form field allows the user to select a course from a list of options that are loaded from a REST endpoint. The form field has a label and a placeholder that provide context and guidance for the user, and the user can select a single option or clear their selection if needed. When the user selects a course and submits the form, the selected course will be stored and processed as needed.

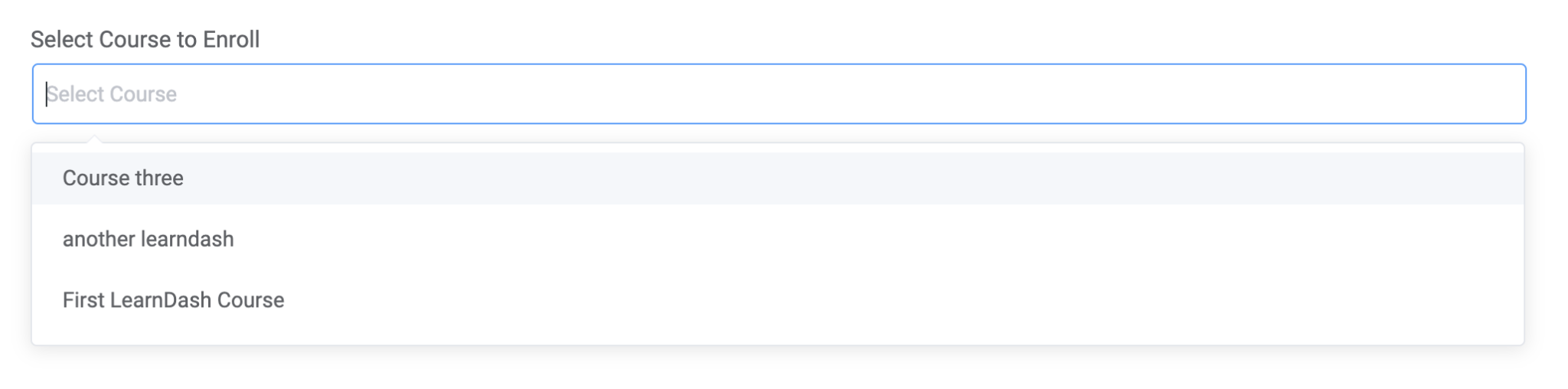

# The preview of the example block.

Rest selector

# Condition block groups

'conditions' => [
    'type'        => 'condition_block_groups',
    'label'       => 'Specify Matching Conditions',
    'inline_help' => 'Specify which contact properties need to matched. Based on the conditions it will run yes blocks or no blocks',
    'labels'      => [
        'match_type_all_label' => 'True if all conditions match',
        'match_type_any_label' => 'True if any of the conditions match',
        'data_key_label'       => 'Contact Data',
        'condition_label'      => 'Condition',
        'data_value_label'     => 'Match Value'
    ],
    'groups'      => [
            'subscriber' => [
                'label'    => 'Contact',
                'value'    => 'subscriber',
                'children' => [
                    [
                        'label' => 'First Name',
                        'value' => 'first_name',
                        'type'  => 'nullable_text'
                    ],
                    ...
                 ]
            ],
            ...
    ],
    'add_label'   => 'Add Condition to check your contact\'s properties',
]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

This code is defining an array with keys and values for a form field in Fluent CRM. The form field has the key conditions, and the values for this field include:

  • type: condition_block_groups
  • labels: an array of labels for different parts of the form field
  • groups: an array of groups of conditions
  • add_label: Add Condition to check your contacts properties`

The type value indicates that this form field is a condition_block_groups field, which is a type of form field that allows the user to specify conditions that need to be met for a certain action to be taken.

The labels array includes strings that will be used as labels for different parts of the form field, such as the match_type_all_label which is the label for the option to match all conditions, the match_type_any_label which is the label for the option to match any condition, the data_key_label which is the label for the field where the user selects a contact data property, the condition_label which is the label for the field where the user selects a condition, and the data_value_label which is the label for the field where the user inputs a value to match.

The groups array includes groups of conditions that the user can specify. Each group has a label and a value that identifies the group, and a children array that includes the individual conditions in the group. Each condition has a label, a value, and a type that specifies the type of input field to use for the value

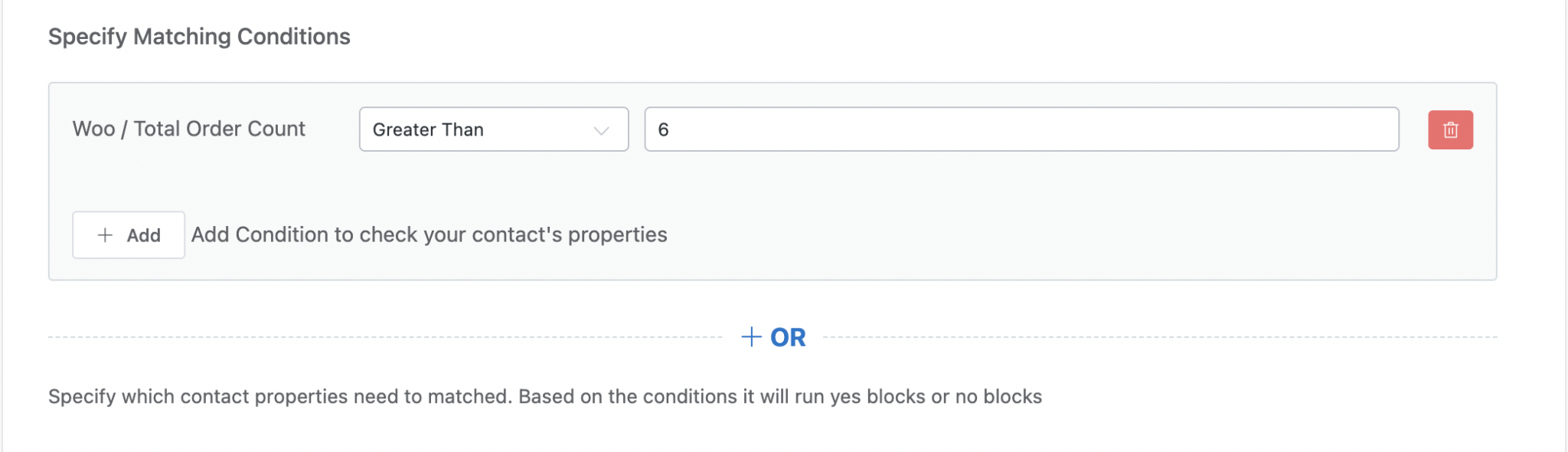

# The preview of the example block.

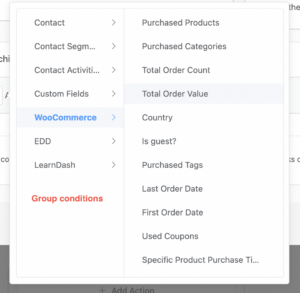

Condition block groups 1 Condition block groups 2

# Custom sender config

'mailer_settings' => [
    'type'        => 'custom_sender_config',
    'check_label' => 'Set Custom From Name and Email',
]
1
2
3
4

This code is defining an array with keys and values for a form field in Fluent CRM. The form field has the key mailer_settings, and the value for this field is:

  • type: custom_sender_config
  • check_label: Set Custom From Name and Email

The type value indicates that this form field is a custom_sender_config field, which is a type of form field that allows the user to specify custom sender settings for an email. The check_label value is a string that will be displayed as the label for a checkbox associated with this form field. When the checkbox is checked, the user can specify custom sender settings. When it is not checked, the default sender settings will be used.

# The preview of this example block

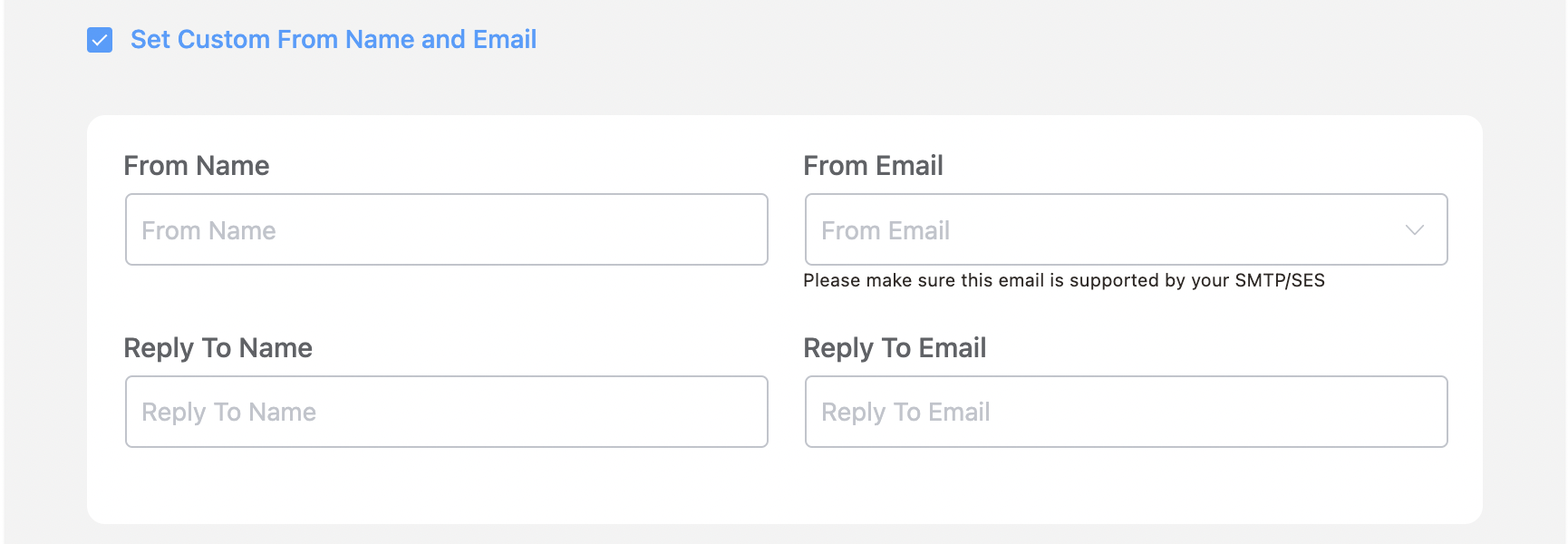

Custom sender config

# Radio buttons

'wait_type'        => [
    'type'    => 'radio_buttons',
    'label'   => 'Waiting Type',
    'options' => [
        [
            'id'    => 'unit_wait',
            'title' => 'Wait for a specific period'
        ],
        [
            'id'    => 'timestamp_wait',
            'title' => 'Wait until a specific date-time'
        ],
        [
            'id'    => 'to_day',
            'title' => 'To a day of the week'
        ],
        ...
    ]
],
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

This code is defining an array with keys and values for a form field in Fluent CRM. The form field has the key wait_type, and the value for this field is:

  • type: radio_buttons
  • options: an array of radio button options

The type value indicates that this form field is a radio_buttons field, which is a type of form field that allows the user to select one option from a list of radio buttons.

The options value is an array of radio button options, where each option is an array containing an id and title value. The id value is a string that specifies the unique identifier for the radio button option, and the title value is a string that will be displayed as the label for the radio button option.

# options possible sets:

key Description
id The value of `id` is a unique identifier for a option
title The value of `title` is the title for a option

# The preview of this example block.

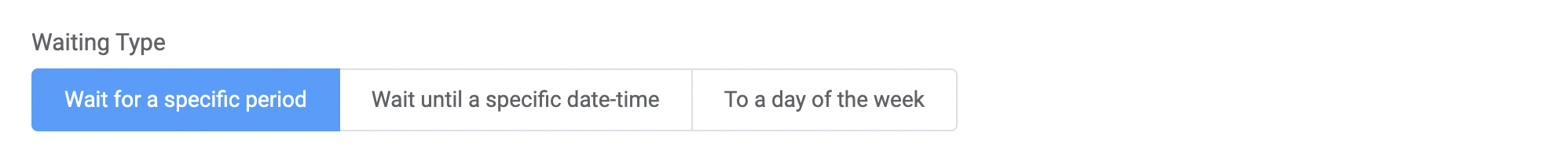

Radio buttons

# Checkboxes

'to_day'            => [
    'type'          => 'checkboxes',
    'label'         => 'Wait until next day(s) of the week',
    'wrapper_class' => 'fc_2col_inline pad-r-20',
    'options'       => [
        [
            'id'    => 'Mon',
            'title' => 'Mon'
        ],
        ...
    ],
],
1
2
3
4
5
6
7
8
9
10
11
12

This code is defining an array with keys and values for a form field in Fluent CRM. The form field has the key to_day, and the value for this field is:

  • type: checkboxes
  • wrapper_class: fc_2col_inline pad-r-20
  • options: an array of checkbox options

The type value indicates that this form field is a checkboxes field, which is a type of form field that allows the user to select one or more options from a list of checkboxes. The wrapper_class value is a string that specifies a class name for the container element that wraps this form field.

The options value is an array of checkbox options, where each option is an array containing an id and title value. The id value is a string that specifies the unique identifier for the checkbox option, and the title value is a string that will be displayed as the label for the checkbox option.

# options possible sets:

key Description
id The value of `id` is a unique identifier for a option
title The value of `title` is the title for a option

# The preview of this example block.

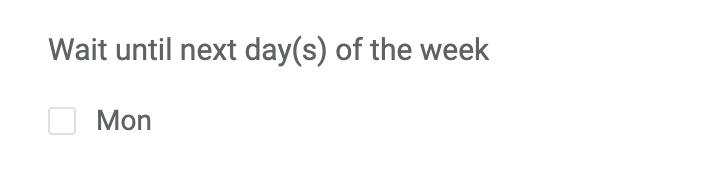

Checkboxes

# Time selector

'to_day_time'        => [
    'label'          => 'Time of the day',
    'type'           => 'time_selector',
    'placeholder'    => 'Select Time',
    'wrapper_class'  => 'fc_2col_inline',
    'picker_options' => [
        'start' => '00:00',
        'step'  => '00:10',
        'end'   => '23:59'
    ]
]
1
2
3
4
5
6
7
8
9
10
11

The to_day_time field is a time selector that allows the user to select a specific time of the day. The time picker has options for the start time, time increment step, and end time. The start time is set to 00:00 (midnight), the step is set to 10 minutes, and the end time is set to 23:59 (one minute before midnight). The to_day_time field is displayed in a two column layout and has a placeholder text of "Select Time". It is likely used in conjunction with the to_day field to specify a specific day and time for the wait period.

# The preview of this example block.

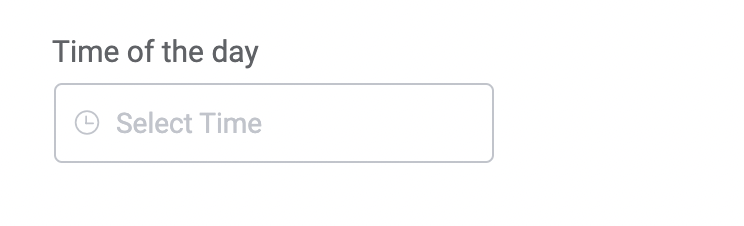

Time selector

← Smart Code →
